CCD Flush Mount Color Night Vision Infrared Wide View Angle Vehicle Keyhole Rear View Backup Camera
Model Number: DF-8013IR



connect two-pin connector to the mirror reverse wire to set for normal view
Every year, thousands vehicle backup accidents happen nation wide. In many cases, children are injured and killed because drivers (a lot of times, their own parents) don't see them while backing up. The area, often called blind spot, behind your vehicle can be a killing zone! The blind area ranges from 17 feet for a Honda Accord to 51 feet for a Chevrolet Avalanche. Vehicle rear view backup cameras do not replace safety controls/activities, but they provide additional safety helps if you drive a RV, truck, bus, van, airplane, or any vehicle that has no rear view mirror or poor rear vision.

System Features:

  • Latest Model New Arrival - Brand New COLOR CCD Flush Mount Night Vision Infrared Wide View Angle Vehicle Rear View Backup Camera
  • New Feature: user adjust left/right mirror reverse image - can set to display a reversed camera image on the monitor (for vehicle rear viewing to duplicate the normal view seen in a rear-view mirror) OR a normal view on the monitor (for vehicle front viewing) - connect two-pin connector to the mirror reverse wire to set for normal view
  • Use standard vehicle power supply of 12V DC
  • Water-proof without extra housing: for part (camera glass lens) exposed to outside ONLY and for normal usage ONLY. Camera body and cables are not designed to be exposed to outside and must be properly sealed against moisture. Incorrect installation and abnormal usage MAY result in loosing water-proof feature.
  • Wide View Angle 120 degree - If you just buy a cheap 40 degree rear view camera, why bother? You can see more with your own eyes (through standard vehicle mirrors) than the camera can see! Without a wide view angle lens, it is not a vehicle rear view camera!
  • Standard RCA video output


Sample Installations on a Land Rover SUV (click on the picture to enlarge)

Note: The camera is designed to operate with constantly changing voltage levels (within normal range) produced by vehicles' battery and alternator. However, some vehicles have a very high momentary voltage at the vehicle starting time and the overload might cause damage to the camera. If that is the case for your vehicle, you will need to install a fuse, voltage regulator, etc. to protect your camera. Please consult professional vehicle audio/video equipment installers if needed.






(above are manufacturer stock pictures for reference only)

System Specifications:
Image Sensor 1/3" SHARP CCD Sensor Horizontal Resolution 420 TV Lines
Effective Pixels 512(H) x 492(V) Minimum Illumination 0 LUX (w/IR LEDs on) / F:2.0
Sensing Area
 4.9mm x 3.7mm
 Sync System
 Internal
Horizontal Sync Frequency
 15,734 KHz
 Vertical Sync Frequency 60 Hz
Scanning System
 1/2 Interlace
 Gamma Consumption
 0.45
Video Out Signal 1.0 Vp-p 75 ohm Power Supply DC 12V
AGC
 Auto
 S/N Ratio
 Better than 48dB
Electronic Shutter
 1/60 - 1/100,000 second
 Weight
 Approx 105 g (Approx. 3.7 oz)
Dimensions (Cylinder part)
 Φ 30 mm x 73 mm (approx. Φ 1.18" x 2.87") Built-in Lens
 f=2.9mm / F=2.0
Cable Output
 Standard RCA Video (Yellow) & DC (Red) Jack
 BLC
 Auto
White Balance
 Auto
 TV System
 NTSC
Operating Temperature
 14°F - 122°F (-10°C - 50°C) / RH 95% Max Storage Temperature
 -4°F - 140°F (-20°C - 60°C) / RH 95% Max
Current Consumption
 Max 400mA
 Lens Angel
 Wide View Angel 120°
specifications are subject to change without notice

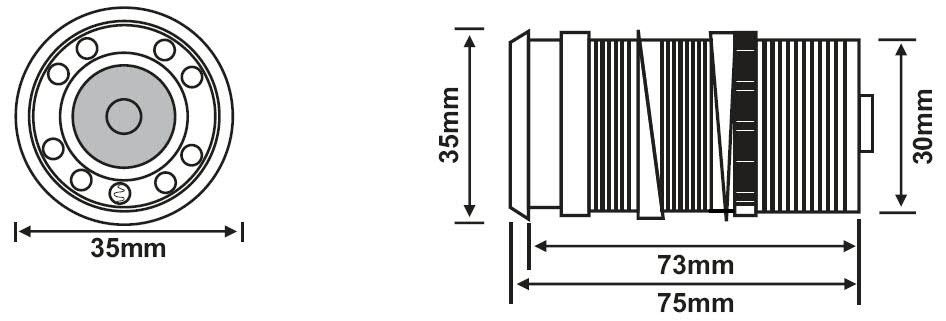

DF-8013IR Model Dimensions

Buy CCD Flush Mount Color Night Vision Infrared Wide View Angle Vehicle Keyhole Rear View Backup Camera Now:
US$219.99 US$139.99 + U.S. S/H (US$15.00)
(clicking the "Add to Cart" button below indicates you agree with all terms stated on the Support page)
For your convenience, your camera comes with one free Male Power Lead Plug, click here if you need to purchase an extra one.
