High Quality Ultra Thin 7" Mobile Sun Visor Clip-On TFT LCD Monitor
Model Number: IC-743B


the unit can be attached onto both the driver side and the passenger side sun visor boards
Sample Install
sample installation of slightly different IC-7169 model
This sun visor color TFT LCD monitor is one of the best mobile in-vehicle use LCDs that attaches to your vehicle's existing sun visor board. There is absolutely no complicated installation needed at all, simply clip this ultra thin LCD monitor onto your existing sun visor board (see the sample installation picture on the left), works for both the driver side and the passenger side sun visor boards. It can be used with any of our vehicle rear view backup cameras together as a complete Vehicle Rear View Backup System. This sun visor LCD monitor has two standard RCA type video inputs that give you the most convenience. For example you can connect the LCD monitor to your rear view camera AND your DVD player at the same time, and switch between the two by one button press
  • New Arrival -  Brand New Ultra Thin 7" Mobile Sun Visor 16:9 TFT LCD Monitor
  • Ultra Thin - ONLY 11 mm (0.4 inch)
  • Two standard RCA type video inputs, one button switch between Video 1 and Video 2
  • Auto activate/power on when vehicle in reverse mode (when blue wire is connected to the reverse light circuit)
  • On-screen menu
  • NTSC/PAL System auto switch
  • Full function remote control
  • High resolution
  • Low power consumption, zero radiation
  • Download Document

IC-743B Ultra Thin Sun Visor Clip-On TFT LCD Monitor Kit
Content:

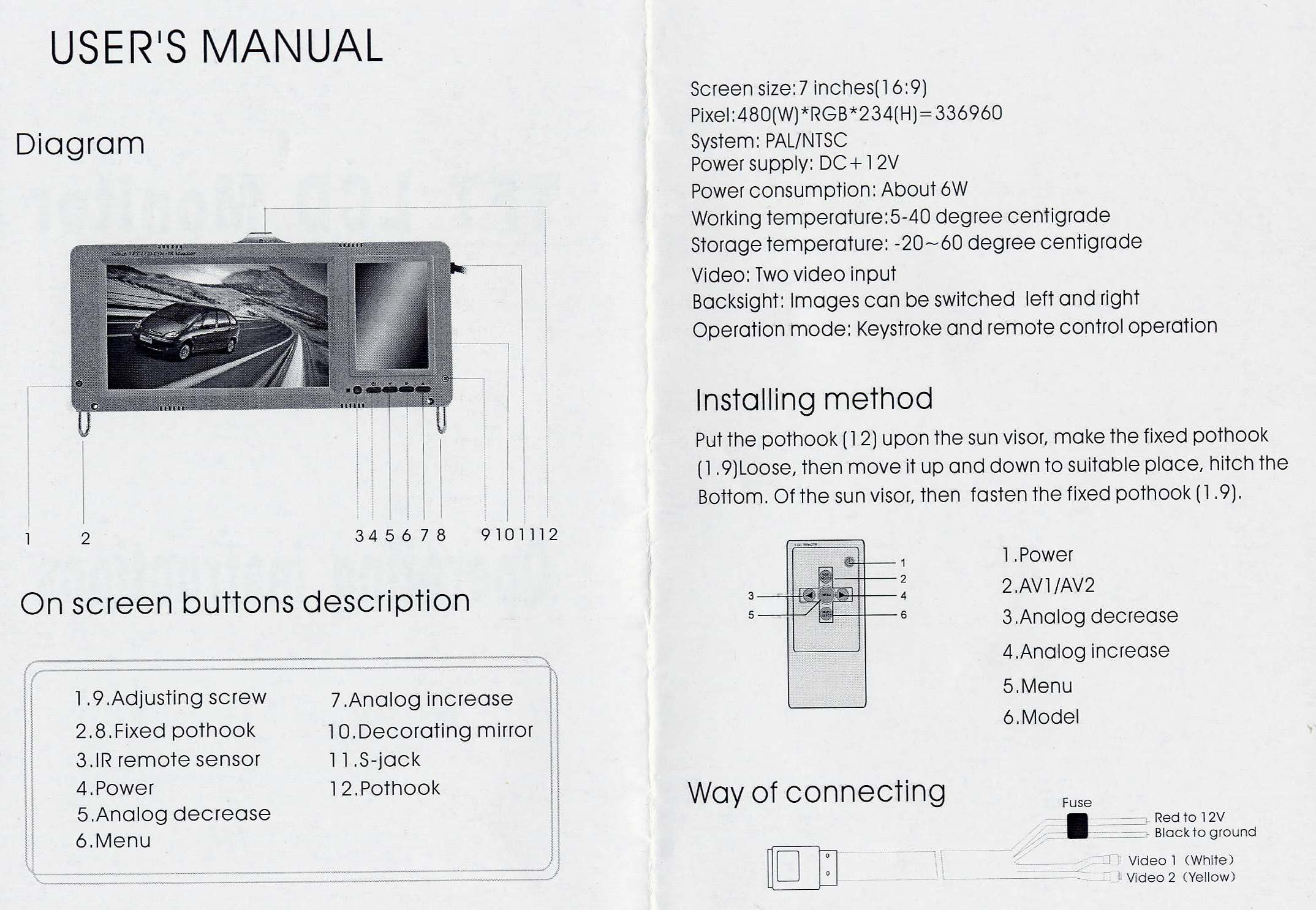

One (1) IC-743B TFT LCD Monitor, one (1) Remote Control, one (1) Video/Power Connecting Cord, one (1) Operation Manual.

System Specifications:

Display Screen TFT 7" Pixel
336960 (480 x 234)
Power Consumption
Approx 6W
Power Supply
DC 12V
TV System
NTSC/PAL
Video Inputs
2 Inputs
Dimension
Approx 265mm x 117mm x 11mm
(10.5" x 4.6" x 0.4")

Weight  Approx 335 g (11.8 oz)
Working Temperature
5°C - 40°C (41°F - 104°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)

Buy High Quality Ultra Thin 7" Mobile Sun Visor Clip-On TFT LCD Monitor
US$259.99 + U.S. S/H (US$25.00)
(clicking the "Add to Cart" button below indicates you agree with all the terms stated on the Support page)

Contact us for availability!
